Toro invented the category, now meet the TORO DINGO TX 1000 that's redefining the compact utility loader. Designed with vertical lift loader arms, its 1,000-lb rated operating capacity delivers category crushing performance. The TX 1000 also offers outstanding hinge pin height of 81" (205.7 cm) to clear the side of 30-yard dumpsters and one-ton trucks for maximum jobsite productivity. Patented controls are easy to operate and an innovative foot-operated auxiliary control results in greater efficiency. The TX 1000 is a lightweight, maneuverable machine that packs unmatched strength and reach in a compact package for the ultimate working advantage.
Dingo TX 1000 features:
VERTICAL LIFT LOADER ARMS
• The vertical lift loader arm design results in a rated operating capacity of 1,000 lbs.
• Increased load capacity and greater reach at full height deliver even stronger performance
• 81" (206 cm) hinge pin height allows attachments to easily clear the side of 30-yard dumpsters or one-ton trucks
• Vertical path of lift arms allows for more efficient vertical applications, such as augering or concrete breaking
HIGH DRIVE TRACK SYSTEM
• Kevlar® or steel reinforced tracks ensure maximum strength and durability
• Ideal for the demands of any jobsite to outperform on any surface, even sand or loose gravel
• Maximum maneuverability on uneven surfaces
EASY OPERATION
• Our patented traction control design is intuitive, easy to operate and effortless
• Auxiliary foot control maintains hydraulic flow to the attachment, freeing the operators hands to focus on ground speed an attachment positioning
• Dedicated operating platform with thigh and hip padding for increased operator comfort
• Suspended platform has clear line of sight to the attachment plate, machine, and jobsite for maximum visibility
POWERFUL AND EFFICIENT
• Kubota® D1305 diesel, Tier-4 compliant engine features high torque and increased displacement for the strongest Dingo yet
• Fast ground speeds up to 4.0 mph (6.4 km/h) in forward and reverse
• Dual fuel tanks offer all day productivity
• Easy engine access and belt-free design minimize maintenance

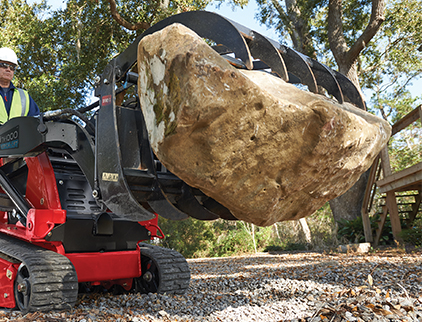

UNMATCHED STRENGTH
Vertical lift loader arms allow the TX 1000 to lift and transport heavy loads with a category-leading rated operating capacity of 1,000 lbs.
HIGH DRIVE TRACK SYSTEM
Ideal for the demands of any jobsite to outperform on any surface, even sand or loose gravel.

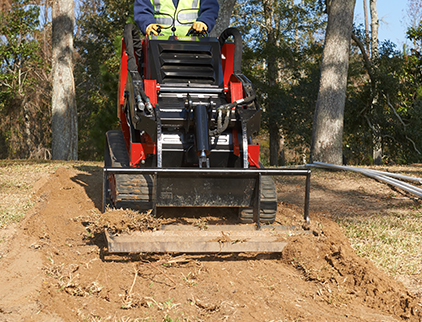

COMPACT FOOTPRINT
The narrow model is just 33.7-in (86 cm) wide and fits through standard 36-in gates. At just 41-in (104 cm) wide, the wide-track model is also easy to maneuver and offers a lower ground pressure, making it light on turf.

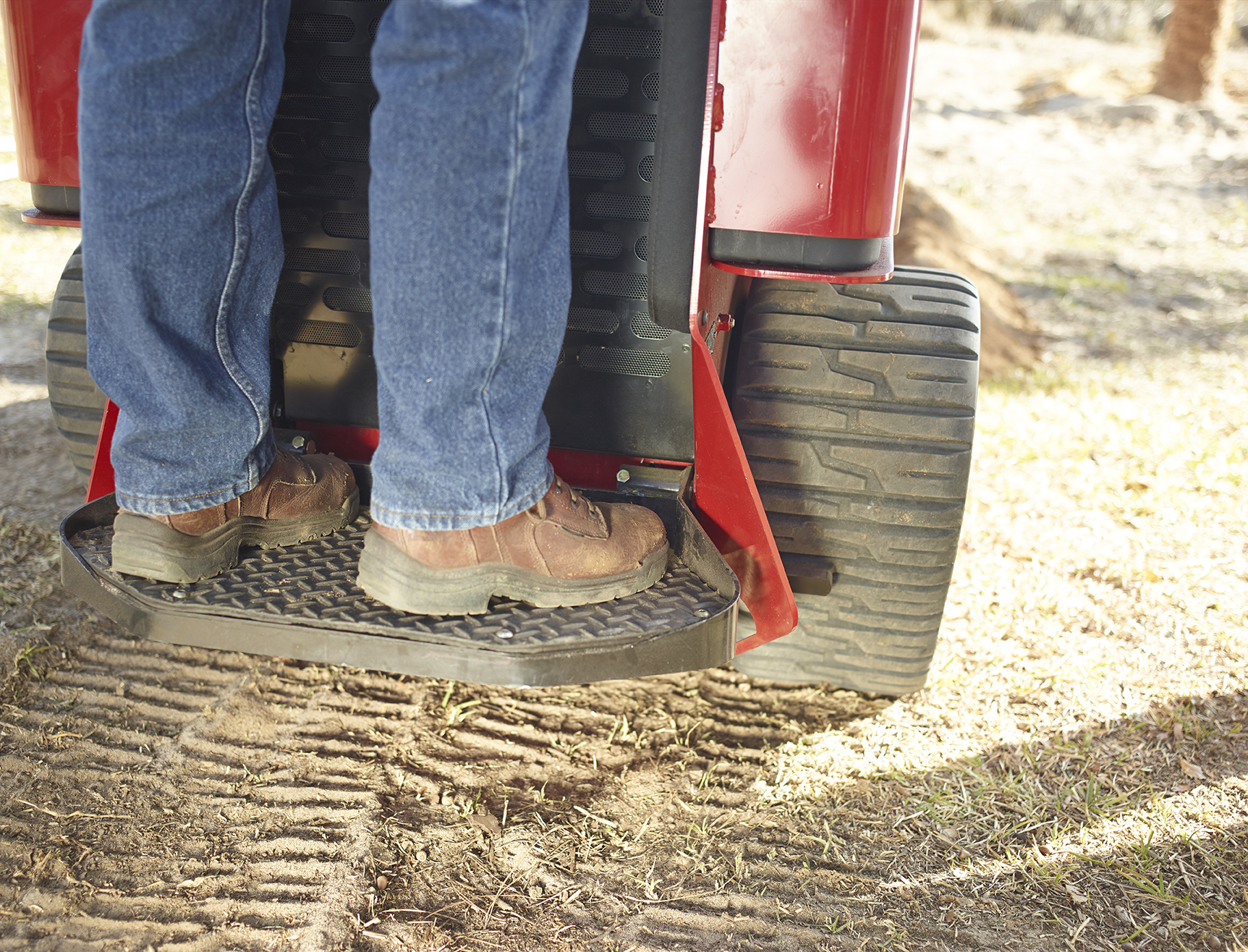

INCREASED COMFORT AND VISIBILITY
Dedicated operator platform offers thigh and hip padding for operator comfort and is suspended providing a clear line of sight to the attachment, plate, machine and jobsite.

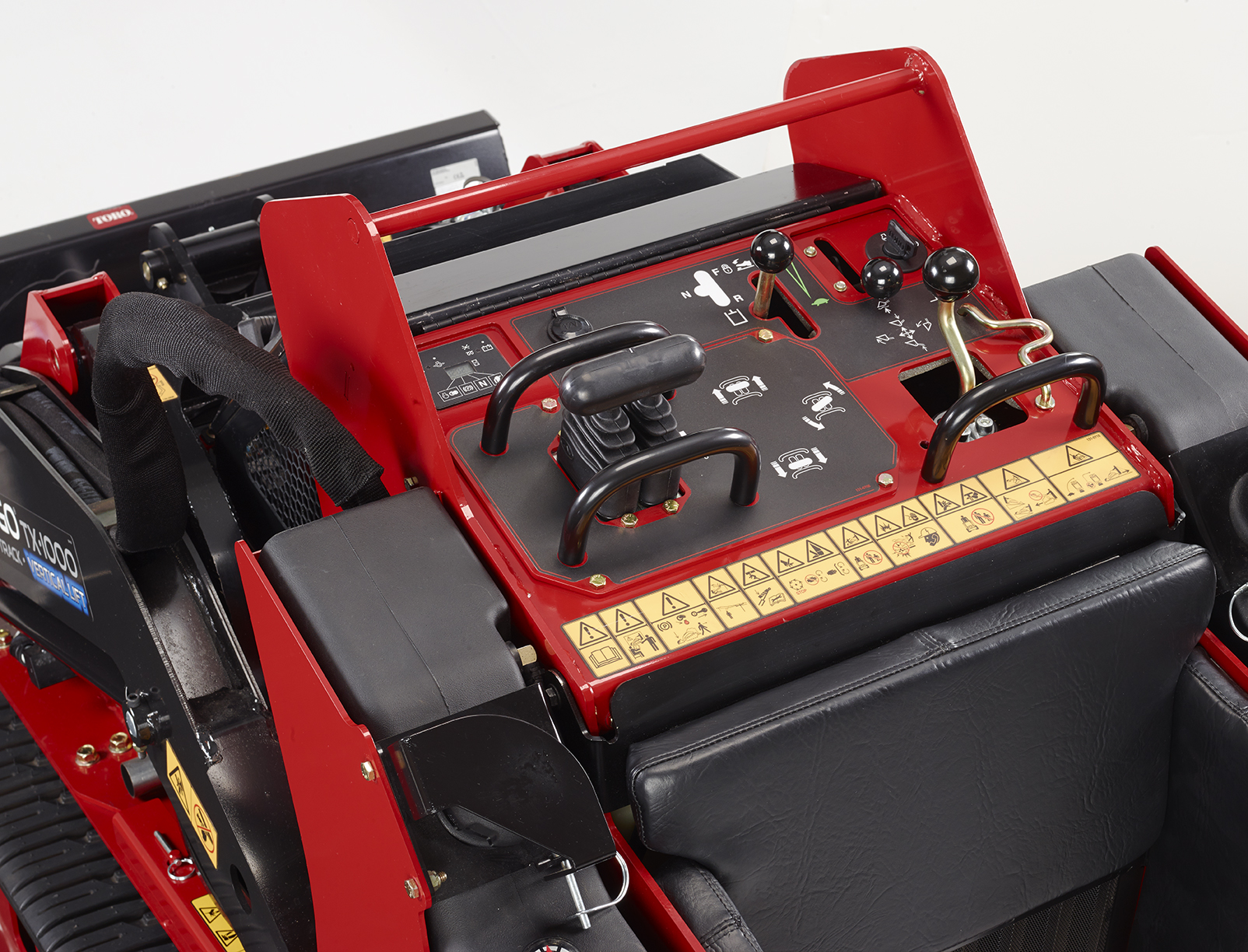

INTUITIVE OPERATION
The patent-pending control system is exclusive to the TX 1000 providing intuitive operation that’s effortless for the operator, all day long.
Specifications:
Engine: Kubota D1305 DieselAir Filter: Two-stage, heavy-duty remote
Cooling System: Liquid Cooled
Fuel Tank: 11.5 gallons (44 liters)
Oil Capacity: 6 quarts (5.7 liters)
Hydraulic Pressure: 3,000 PSI
Hydraulic Flow: Traction: 13.3 gpm (each pump), Auxiliary: 15.2 gpm
Reservior Capacity: 15.2 gallons (57.5 liters)
Tracks: Sprocket-drive, 6 road wheels per side, Traction: Dual hydrostatic pump
Track Width: 127.6" x 9.5" (324 cm x 24 cm)
Dimensions (WxLxH) w/o bucket: 41.0" x 81.7" x 53.2" (104 cm x 208 cm x 135 cm)
Weight: 2,790 lbs.
Maximum Operating Height: 105" (267 cm)
Hinge Pin Height: 81" (206 cm)
Rated Operating Capacity (35% Tip Capacity)* *Per ISO 14397-1.: 1,075 lbs. (488 kg)
Dingo TX 1000 Easy Operation
Dingo TX 1000 High Drive Track System
